Retractive Level Compensator

Retractive Level Compensator

PSPL Series

  • Avoid pollution and external mechanical force, flexible contact

  • Suitable for fast handling in small space

  • Resistant to environment, corrosion, and abrasion

  • Reduce metal dust, special for dust-free working condition

  • During the operation, the hose is static and without transverse load

ELECTRONICS(PCB Board) For Retractive Level Compensator
Contact Us download
Products

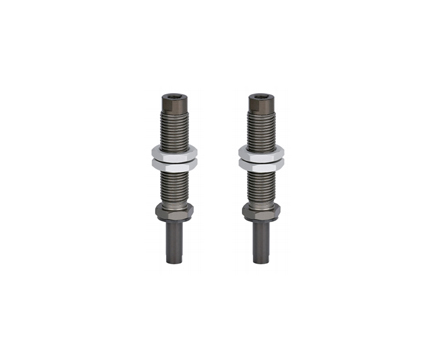

Features Features

Retractive Level Compensator
Retractive Level Compensator

  • Level compensator with built-in spring, small elasticity


  • Small size and lightweight


  • Special surface treatment for the guide rod


  • Guide sleeve with built-in resin bushing


  • Retractive structure design

Selection Guide Selection Guide

PSPL Series Mounting Parts

PSPL - I 10 M5F - M10

①     ② ③  ④     ⑤


① Series② Buffer style③ Buffer stroke④ Vacuum port connection⑤ Mounting thread
PSPLI - Built-in spring10 15 20M5F - M5×0.8 female threadM10 - M10×1


Selection


Model/Buffer stroke3101520
PSPL-I□M5F-M10PSPL-I3M5F-M10PSPL-I10M5F-M10PSPL-I15M5F-M10PSPL-I20M5F-M10
PSPL-I□RM5F-M10-PSPL-I10RM5F-M10PSPL-I15RM5F-M10PSPL-I20RM5F-M10

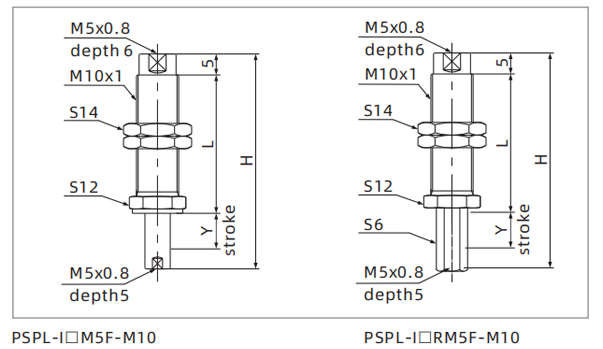

Dimensions Dimensions

Retractive Level Compensator

Dimensions Retractive Level Compensator


Model/SizeHLYF1
N		F2
N
PSPL-I10(R)M5F-M105131.8101.01.4
PSPL-I15(R)M5F-M106136.8151.01.4
PSPL-I20(R)M5F-M107141.8201.01.4


  • Note: 1. "F1" means spring force at 0 strokes, and "F2" means spring force at max. stroke

    2. The locking torque of the M10 nut is 2.5 ~ 3.5N.M, please work within the specified torque range

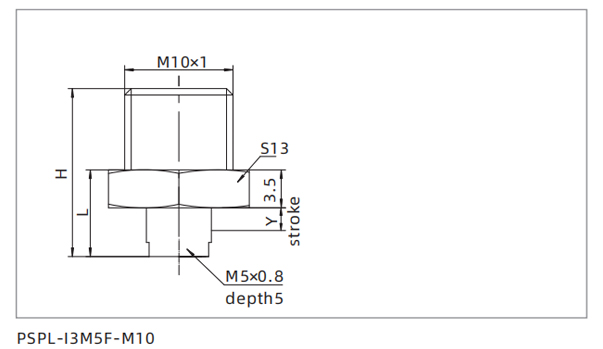

Dimensions Retractive Level Compensator PSPL-I3M5F-M10


Model/SizeHLYF1
N		F2
N
PSPL-I3M5F-M1016.5930.71.0


  • Note: 1. "F1" means spring force at 0 strokes, and "F2" means spring force at max. stroke
